Start with the video, then use the science notes and recommended parts below to follow the idea behind the build.

High voltageBuild

Watch on YouTube

How it works

What this project is testing.

An electromagnetic pulse is a very fast burst of changing magnetic field. If that field passes through nearby conductors, it can induce brief voltages and currents.

Read more

At a safe educational scale, the experiment demonstrates Faraday law: fast changes matter. A slow magnetic field may do almost nothing, while a sharp pulse can create a noticeable electrical kick.

V_{in d} = - N \frac{d Φ _{B}}{d t}

A changing magnetic flux through a loop induces voltage.

U = \frac{1}{2} C V^{2}

A charged capacitor stores energy that can be released quickly.

Recommended parts

Products used in this project.

Affiliate links may earn Keystone Science a commission. Match ratings, values, sizes, polarity, and safety requirements to your own build before buying.

DEVMO DC 3V-6V to 400kV 400000V Boost Step-up Power Module High-Voltage Generator

high-voltage power supplypower

DEVMO DC 3V-6V to 400kV Boost Step-up High-Voltage Generator Module

$10.994.4(508)

Prefer low-current educational modules over mains-powered high-voltage supplies. Review requirements and safety guidance before buying.

Amazon Basics 8-Pack 9V Long-Lasting Alkaline Batteries for Smoke Detector, Electronics & Audio, Reliable, 5-Year Shelf Life

batterypower

Amazon Basics 8-Pack 9V Long-Lasting Alkaline Batteries

$12.694.7(242K)

General electronics battery pick; choose AA/AAA variants when the circuit calls for them.

Auto Ranging Digital Multimeter TRMS 6000 with Battery Alligator Clips Test Leads AC/DC Voltage/Account,Voltage Alert, Amp/Ohm/Volt Multi Tester/Diode

multimetertest equipment

Auto-Ranging Digital Multimeter TRMS 6000 with Battery, Alligator Clips, and Test Leads

$22.394.6(1,700)

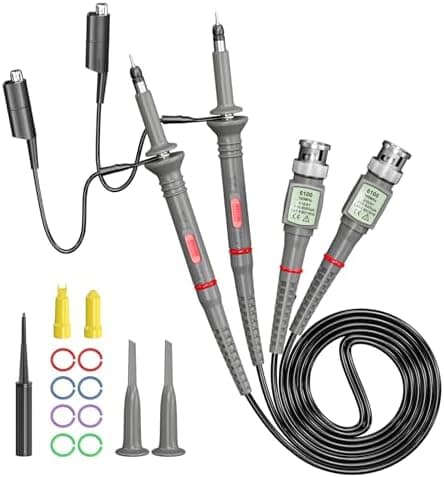

Goupchn Universal P6100 Oscilloscope Clip Probes 100MHz with Accessories Kit 1X 10X 2 Pack
